Solar Solar Inverters

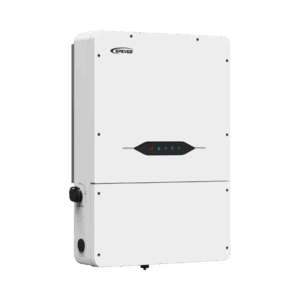

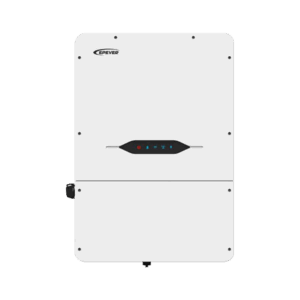

EPEVER EHD Series

6kW-12kW, 85-480Vdc

The EPEVER EHD Series is a split-phase high-voltage on-grid hybrid inverter supports flexible charging methods, including utility, generators, and solar energy. It also provides versatile power supply mode, such as grid bypass, off-grid operation, and on-grid feeding power. The series features comprehensive and efficient energy management functions. It supplies power for daily use, stores excess power, and exports the remaining power to the grid. These benefits help to reduce electricity costs, decrease dependence on the grid, and improve power reliability.

Key Features

High Efficiency

Smart Power Management

Reliable & Safe

User-Friendly & Intelligent Monitoring

Model Specification Overview

Models

Rated Output Power (W)
Battery Nominal DC Voltage
Max. PV Input DC Voltage
MPPT Voltage Range
Max. PV Array Input Current
Phase
Dimension (LxWxH)
Net Weight
6000VA
310V
580V
90-550V
16A
Single phase
238 × 513 × 737mm
45Kg
8000VA
310V
580V
90-550V
16A
Single phase
238 × 513 × 737mm
45Kg
10000W
310V
580V
90-550V
16A
Single phase
238 × 513 × 737mm
45Kg
12000W
310V
580V
90-550V
16A
Single phase
238 × 513 × 737mm
45Kg

Key Features

High Efficiency

Smart Power Management

Reliable & Safe

User-Friendly & Intelligent Monitoring
