Solar Solar Inverters

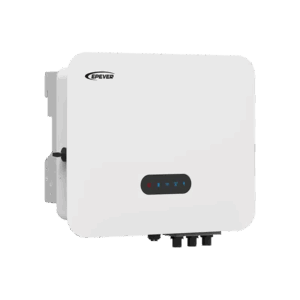

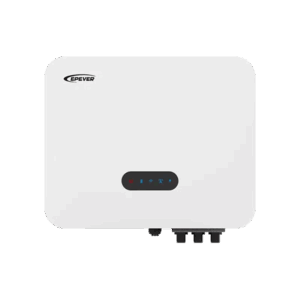

EPEVER ELS Series

3kW-6kW, 48Vdc

The EPEVER ELS Series is a single-phase residential hybrid inverter supports flexible charging options, including utility, generators, and solar energy. It also provides versatile power supply mode, such as grid bypass, off-grid power supply, and on-grid feeding power.

The series features comprehensive and efficient energy management functions. It supplies power for daily use, stores excess power, and exports the remaining power to the grid. These benefits help to reduce electricity costs, decrease dependence on the grid, and improve power reliability.

Key Features

No data was found

Model Specification Overview

Models

Rated Output Power (W)
Battery Nominal DC Voltage
Max. PV Input DC Voltage
MPPT Voltage Range
Max. PV Array Input Current
Phase
Dimension (LxWxH)
Net Weight
3000W
48Vdc
580V
100-550V
16A
Single phase
222.5 × 558.1 × 455.1mm
28.1Kg
3680W
48Vdc
580V
100-550V
16A
Single phase
222.5 × 558.1 × 455.1mm
28.1Kg
4000W
48Vdc
360V
100-550V
16A
Single phase
222.5 × 558.1 × 455.1mm
28.1Kg
4600W
48Vdc
580V
100-550V
16A
Single phase
222.5 × 558.1 × 455.1mm
28.1Kg
5000W
48Vdc
580V
100-550V
16A
Single phase
222.5 × 558.1 × 455.1mm
28.1Kg
6000W
48Vdc
580V
100-550V
16A
Single phase
222.5 × 558.1 × 455.1mm
28.1Kg

Key Features

No data was found

Document & Download

No data was found
