Solar Charge Controllers

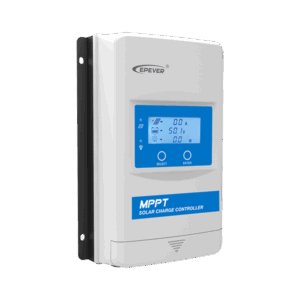

EPEVER XTRA-N G3 Series

MPPT 10A-40A, 100-150V

The EPEVER XTRA-N G3 series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module*. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system’s applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.



Key Features

Innovative MPPT technology & ultra-fast tracking speed

Tracking efficiency is no less than 99.5%

Compatible with various types of batteries: lithium, gel, sealed, etc

Wide MPPT voltage range, maximizes the utilization of PV modules

Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries

RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring

IP33 enclosure, Comprehensive electronic protections

Model Specification Overview

Models

Battery Rated Voltage
Charge/Discharge Current
Controller Work Voltage Range
Rated Charging Power
Max. Conversion Efficiency
Max. Load Efficiency
Dimension (LxWxH)
Net Weight
12/24VDC
10A
8~31V
130W/12V, 260W/24V
98.20%
96.20%
175 x 143 x 48mm
0.59 kg
12/24VDC
20A
8~31V
260W/12V, 520W/24V
98.30%
96.40%
217 x 158 x 56.6mm
0.97 kg
12/24VDC
30A
8~31V
390W/12V, 780W/24V
98.60%
96.60%
230 x 165 x 63mm
1.30 kg
12/24VDC
40A
8~31V
520W/12V, 1040W/24V
98.60%
96.50%
255 x 185 x 67.8mm
1.72 kg
12/24VDC
40A
8~31V
520W/12V, 1040W/24V
97.90%
95.40%
255 x 187 x 75.7mm
2.08 kg
12/24/36/48VDC
40A
8~62V
520W/12V, 1040W/24V, 1560W/36V, 2080W/48V
98.50%
97.20%
255 x 189 x 83.2mm
2.60 kg

Key Features

Innovative MPPT technology & ultra-fast tracking speed

Tracking efficiency is no less than 99.5%

Compatible with various types of batteries: lithium, gel, sealed, etc

Wide MPPT voltage range, maximizes the utilization of PV modules

Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries

RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring

IP33 enclosure, Comprehensive electronic protections
