Batteries Standard Battery

IP1232

12V/3.2Ah

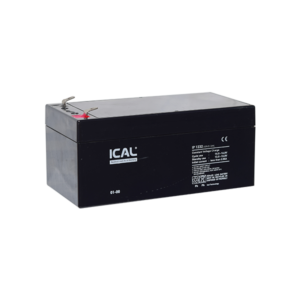

ICAL IP1232 12V/3.2Ah lead-acid battery designed for general-purpose energy storage and backup applications.

Contact Us

Key Features

Proven Technology: Time-tested lead-acid design for dependable performance.

Cost-Effective: Affordable solution for backup and energy storage needs.

Versatile Use: Suitable for UPS, and general standby power applications.

Reliable Backup: Ensures continuous power during outages or grid instability.

Specification

Nominal Voltage

:

12V
Capacity

:

3.2Ah (20HR)
Dimension (LxWxH)

:

132 x 65 x 58mm
Total Height

:

65mm
Approx. Weight

:

1.20kg
Max. Charging Current

:

0.96A
Terminal Type

:

T1
Max. Discharge Current

:

48A (5s)
Capacity affected by temperature (20HR)

:

102% at 40°C; 100% at 25°C; 85% at 0°C; 65% at -15°C
Self-discharge (25°C) – 3 months

:

Remaining capacity 91%
Self-discharge (25°C) – 6 months

:

Remaining capacity 82%
Self-discharge (25°C) – 12 months

:

Remaining capacity 65%
Nominal operating temperature

:

25°C ± 3°C
Operating temperature

:

-15°C ~ 50°C
Float charging voltage (25°C)

:

13.60 to 13.80V
Cyclic charging voltage (25°C)

:

14.50 to 14.90V
Terminal material

:

Copper

Key Features

Proven Technology: Time-tested lead-acid design for dependable performance.

Cost-Effective: Affordable solution for backup and energy storage needs.

Versatile Use: Suitable for UPS, and general standby power applications.

Reliable Backup: Ensures continuous power during outages or grid instability.
