Servo Motor Stabilizers

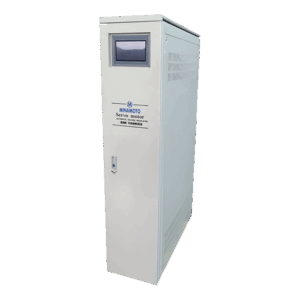

SM150KS3

150 kVA, 3-Phase

ICA Stabilizer SM150KS3 capacity 150.000 VA Three Phase.

Contact Us

Key Features

High-Performance Servo Motor Voltage Stabilizer

Built with DSP-based Control, LCD Monitoring, and Class H Insulation

Ensures Maximum Protection and Long-Term Durability

Specification

Capacity

:

150.000VA
Input Voltage

:

304 ~ 456 V
Output Voltage

:

380 ± 1%V
Phase

:

Three Phase
Efficiency

:

≥ 98%
Control System

:

Central Control Module based on DSP
Dimension Unit (DxWxH)

:

900 x 400 x 1600 mm
Dimension Packing (DxWxH)

:

980 x 485 x 1750 mm
Weight

:

325 kg
Rated Current

:

225A
AC Input Frequency

:

50 Hz
Delay Time

:

4 ~ 7s (Over-Voltage & Under-Voltage Protection)
Ambient Temperature

:

-20 ~ +45ºC
Ambient Humidity

:

< 90%
Electrical Strength

:

No Flashover or Breakdown When at 2500V/min
Insulation Resistance

:

≥ 5mΩ
Ingress Protection

:

IP21
Insulation and Thermal Endurance

:

Class H, VPI process
Display

:

HMI / LCD Display of All Electrical Parameters

Key Features

High-Performance Servo Motor Voltage Stabilizer

Built with DSP-based Control, LCD Monitoring, and Class H Insulation

Ensures Maximum Protection and Long-Term Durability
