SNV-GH5042

5000W, 48Vdc

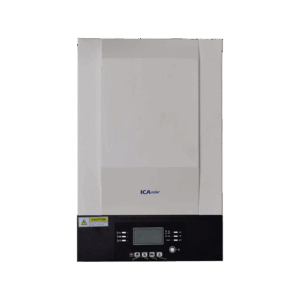

ICA Solar SNV-GH5042 is a hybrid bidirectional single phase solar inverter with capacity of 5000W, 48Vdc.

Contact Us

Key Features

Pure sine wave output

Self-consumption and feed-in to the grid

Programmable supply priority for PV, battery or grid

User-adjustable charging current and voltage

Operation modes: Grid-tied, off-grid and grid-tied with backup

Monitoring software for real-time status display and control

Parallel operation up to 9 units

Battery independent system

Inbuilt WiFi Monitoring Data Logger

Inbuilt RS485 port for Lithium Battery Communication

Specification

Rated Output Power (W)

:

5000W
Battery Nominal DC Voltage

:

48Vdc
Max. PV Input DC Voltage

:

450Vdc
MPPT Voltage Range

:

120Vdc~430Vdc
Max. Charging Current

:

100A
Phase

:

1-phase in/1-phase out
Dimension (DxWxH)

:

140 x 295 x 468mm
Net Weight

:

12 kg
Max. PV Input Power

:

6000W
PV INPUT (DC)

:

Nominal DC Voltage/ Max. DC Voltage

:

360Vdc/450Vdc
Number of MPP Trackers/ Max. Input Current

:

1/27A
GRID-TIED GRID OUTPUT (AC)

:

Nominal Output Voltage

:

220/230/240Vac
Output Voltage Range

:

184~264.5Vac or 195.5~253Vac (selectable)
Output Frequency Range

:

47.5~51.5Hz or 49~51Hz (selectable)
Nominal Output Current

:

21.7A
Power Factor (cos Φ)

:

>0.99
EFFICIENCY

:

Max. Conversion Efficiency (DC/AC)

:

95%
OFF-GRID & HYBRID OPERATION
AC INPUT

:

Acceptable Input Voltage Range

:

90~280Vac or 170~280Vac
Frequency Range

:

50Hz/60Hz (auto sensing)
BATTERY MODE OUTPUT(AC)

:

Nominal Output Voltage

:

220/230/240Vac
Output Wave Form

:

Pure Sine Wave
Nominal Output Frequency

:

50Hz
Efficiency (DC to AC)

:

93%
BATTERY & CHARGER

:

Max. Solar Charging Current

:

100A
Max. AC Charging Current

:

100A
INTERFACE

:

Parallel Function

:

Yes, 9 units
Communication Port

:

USB or RS-232/Dry contact
Monitoring Communication

:

Inbuilt WiFi Monitoring Data Logger
ENVIRONMENT

:

Humidity

:

0~90% RH (no condensing)
Operating Temperature

:

-10°C to 50°C

Key Features

Pure sine wave output

Self-consumption and feed-in to the grid

Programmable supply priority for PV, battery or grid

User-adjustable charging current and voltage

Operation modes: Grid-tied, off-grid and grid-tied with backup

Monitoring software for real-time status display and control

Parallel operation up to 9 units

Battery independent system

Inbuilt WiFi Monitoring Data Logger

Inbuilt RS485 port for Lithium Battery Communication
