SNV-GT3023SSC - ica.id

Solar Solar Inverters

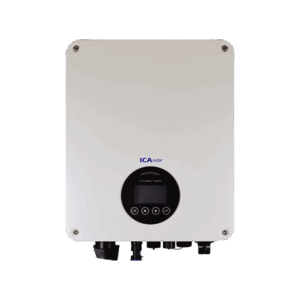

SNV-GT3023SSC

3kW | SINGLE MPPT

Penggunaan inverter On-Grid untuk mengubah arus DC dari panel surya menjadi arus AC. Inverter ini terangkai dalam sistem On-Grid dimana area tersebut harus terhubung dengan jaringan PLN yang ada, dan tanpa menggunaan baterai/aki.

Key Features

Max. PV Voltage up to 600V

Single MPPT

DC power up to 1.5 ratio

High efficiency up to 97.6%

Smaller and lighter

DC/AC surge protection

IP65 protection

WiFi/4G plug optional

Specification

Nominal AC Output Power (kW)

:

3 kW

Max. PV Input DC Voltage

:

600 Vdc

MPPT Voltage Range

:

70V – 560V

Number of MPPT

:

Strings per MPPT

:

Phase

:

1-Phase

Dimension (DxWxH)

:

290 x 390 x 126.5mm

Net Weight

:

8.9Kg

INPUT (DC)

:

Max. recomended PV power

:

4500W

Nominal voltage

:

360Vdc

Start voltage

:

80V

Max. input current per MPPT

:

13A

Max. short-circuit current per MPPT

:

16A

OUTPUT (AC)

:

Max. AC apparent power

:

3000VA

Nominal AC voltage

:

230V L-N

AC grid frequency range

:

50Hz / 60Hz ±5Hz

Max. output current

:

14A

Power factor (cos Φ)

:

0.8 leading to 0.8 lagging

THDI

:

<3%

EFFICIENCY

:

Max efficiency

:

97.60%

PROTECTION DEVICE

:

DC switch

:

Yes

Output over current protection

:

Yes

Anti-islanding protection

:

Yes

DC reverse polarity protection

:

Yes

String fault Detection

:

Yes

Surge protection

:

DC Type II; AC Type III

Insulation detection

:

Yes

AC short circuit protection

:

Yes

ENVIRONMENT

:

Operating temperature range

:

-25°C~+60°C

Cooling type

:

Natural

Max. operation altitude

:

2000m

Max. operation humidity

:

0 – 100%

AC output terminal type

:

Quick connector

IP class

:

IP65

Topology

:

Transformerless

Communication interface

:

RS485/WiFi/4G

Display

:

LCD

Certification & standart

:

EN/IEC62109-1/2

Key Features

Max. PV Voltage up to 600V

Single MPPT

DC power up to 1.5 ratio

High efficiency up to 97.6%

Smaller and lighter

DC/AC surge protection

IP65 protection

WiFi/4G plug optional
