Solar Solar Panels

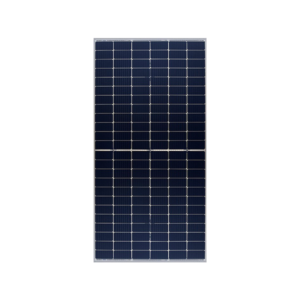

72HM Series

Mono 144-cells, 450Wp – 550Wp

The 72HM Series is a high-performance solar module line built with 144 half-cut PERC cells, available in 166×83 mm and 182×91 mm cell formats. Designed for higher output and greater reliability, these modules deliver excellent efficiency with reduced power loss and improved performance in partial shading conditions. Rugged construction ensures long-term durability, making them ideal for commercial rooftops, industrial facilities, and utility-scale projects.

Key Features

Half-Cut Technology: Minimizes resistive loss and enhances shade tolerance.

High Power Output: Larger cell formats boost energy generation.

Durability: Built for long life with robust materials and construction.

Flexible Application: Suitable for utility, commercial, and rooftop solar projects.

Model Specification Overview

Models

Max. Power (Pmax)
Open Circuit Voltage (Voc)
Short Circuit Current (Isc)
Max. Power Voltage (Vmp)
Max. Power Current (Imp)
Max. System Voltage
Dimension (LxWxT)
Net Weight
550W
50.20V
13.82A
42.40V
12.98A
1500Vdc
2278 x 1134 x 35mm
29kg
450W
50.00V
11.36A
41.40V
10.87A
1500Vdc
2108 x 1048 x 35mm
24.5 kg

Key Features

Half-Cut Technology: Minimizes resistive loss and enhances shade tolerance.

High Power Output: Larger cell formats boost energy generation.

Durability: Built for long life with robust materials and construction.

Flexible Application: Suitable for utility, commercial, and rooftop solar projects.
