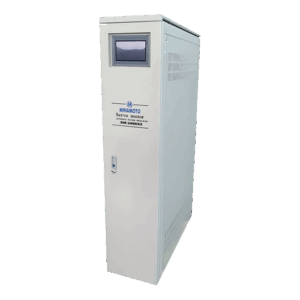

Servo Motor Stabilizers

SM KS3 Series

80 kVA – 1000 kVA, 3-Phase

The SM-KS3 Series is a high-performance servo motor voltage stabilizer designed for industrial and commercial applications requiring precise and reliable power. With capacities from 80 kVA up to 1000 kVA, it provides stable 380V ±1% output, even under wide input fluctuations. Built with DSP-based control, LCD monitoring, and Class H insulation, it ensures maximum protection and long-term durability for mission-critical equipment.

Contact Us

Key Features

Precision Regulation: Maintains stable output voltage (±1%) despite input variations (304–456V).

High Efficiency: Up to 98% efficiency, reducing energy loss and operating costs.

Smart Control: DSP-based central control with HMI/LCD display for real-time monitoring.

Durability: Robust Class H insulation with VPI process ensures long life in harsh conditions.

Model Specification Overview

Models

Capacity
Input Voltage
Output Voltage
Phase
Efficiency
Control System
Dimension Unit (DxWxH)
Dimension Packing (DxWxH)

SM80KS3

SM100KS3

SM120KS3

SM150KS3

SM200KS3

SM250KS3

SM300KS3

80.000 VA
304 ~ 456 V
380 ± 1%V
Three Phase
≥ 98%
Central Control Module based on DSP
710 x 285 x 1325 mm
790 x 370 x 1480 mm
100.000 VA
304 ~ 456 V
380 ± 1%V
Three Phase
≥ 98%
Central Control Module based on DSP
710 x 285 x 1325 mm
790 x 370 x 1480 mm
120.000VA
304 ~ 456 V
380 ± 1%V
Three Phase
≥ 98%
Central Control Module based on DSP
850 x 320 x 1470 mm
930 x 405 x 1625 mm
150.000VA
304 ~ 456 V
380 ± 1%V
Three Phase
≥ 98%
Central Control Module based on DSP
900 x 400 x 1600 mm
980 x 485 x 1750 mm
200.000VA
304 ~ 456 V
380 ± 1%V
Three Phase
≥ 98%
Central Control Module based on DSP
900 x 400 x 1600 mm
980 x 485 x 1750 mm
250.000VA
304 ~ 456 V
380 ± 1%V
Three Phase
≥ 98%
Central Control Module based on DSP
1010 x 405 x 1750 mm
1100 x 500 x 1895 mm
300.000VA
304 ~ 456 V
380 ± 1%V
Three Phase
≥ 98%
Central Control Module based on DSP
1160 x 505 x 1900 mm
1260 x 590 x 2080 mm

Key Features

Precision Regulation: Maintains stable output voltage (±1%) despite input variations (304–456V).

High Efficiency: Up to 98% efficiency, reducing energy loss and operating costs.

Smart Control: DSP-based central control with HMI/LCD display for real-time monitoring.

Durability: Robust Class H insulation with VPI process ensures long life in harsh conditions.

Document & Download

No data was found

Download SM KS3 Series

Brochure
User manual
Certification

Kirim Pertanyaan Untuk SM KS3 Series
