Servo Motor Stabilizers

SM Series

500 VA – 60 kVA, 1~3-Phase

The SM Series Servo Motor Stabilizer provides precise and automatic voltage regulation using advanced servo motor control. It ensures stable power delivery for sensitive equipment, protecting against voltage fluctuations, surges, and sags commonly found in unstable grids.

Contact Us

Key Features

Automatic Voltage Regulation using Advanced Servo Motor Control

Wide Input Range: Handles Large Voltage Fluctuations Effectively

Reliability: Protects Sensitive Equipments from Damage Due to Unstable Power

Durability: Strong Design with Long Service Life for Industrial and Commercial Use

Model Specification Overview

Models

Capacity
Input Voltage
Output Voltage
Phase
Efficiency
Control System
Dimension (DxWxH)
Net Weight

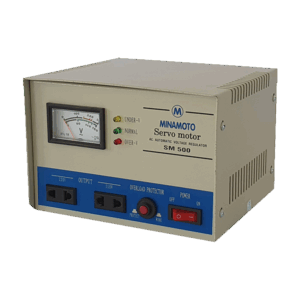

SM500

SM1000

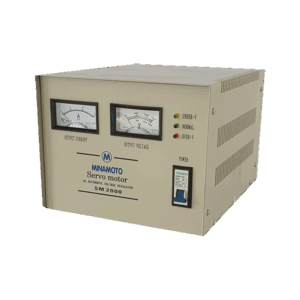

SM2000

SM3000

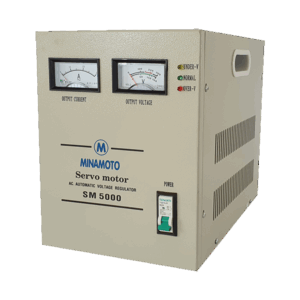

SM5000

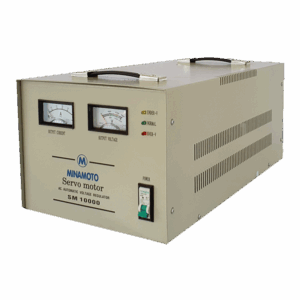

SM7500

SM10000

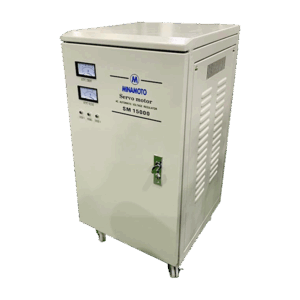

SM15000

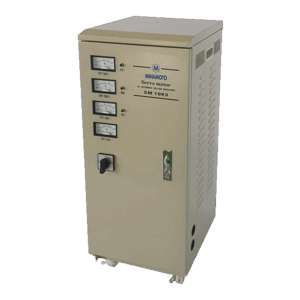

SM10K3

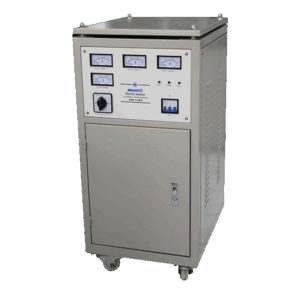

SM15K3

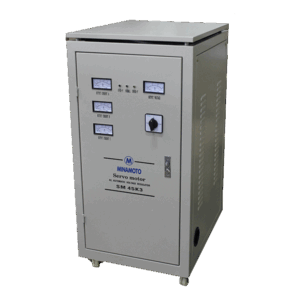

SM45K3

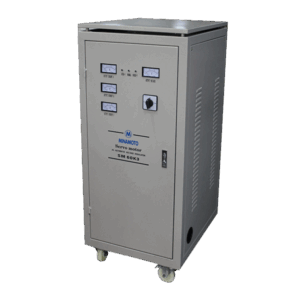

SM60K3

500 VA
140 – 250 V
110 / 220V ± 3%
Single Phase
> 90%
DC Servo Motor
165 x 190 x 140 mm
3.8 kg
1000 VA
140 – 250 V
110 / 220V ± 3%
Single Phase
> 90%
DC Servo Motor
200 x 215 x 157 mm
5.2 kg
2000 VA
140 – 250 V
110 / 220V ± 3%
Single Phase
> 90%
DC Servo Motor
290 x 240 x 200 mm
8.8 kg
3000 VA
140 – 250 V
110 / 220V ± 3%
Single Phase
> 90%
DC Servo Motor
305 x 235 x 235 mm
11.6 kg
5000 VA
140 – 250 V
110 / 220V ± 3%
Single Phase
> 90%
DC Servo Motor
360 x 225 x 290 mm
17 kg
7500 VA
150 – 250 V
220V ± 3%
Single Phase
> 90%
DC Servo Motor
500 x 280 x 240 mm
33 kg
10.000 VA
150 – 250 V
220V ± 3%
Single Phase
> 90%
DC Servo Motor
500 x 280 x 240 mm
36 kg
15.000VA
150 – 250 V
220V ± 3%
Single Phase
> 90%
DC Servo Motor
420 x 380 x 740 mm
60 kg
10.000VA
3 Phase, 4 Wire Y 380VAC + 10 – 20%
3 Phase, 4 Wire Y 380VAC ± 3%
Three Phase
> 90%
DC Servo Motor
415 x 315 x 775 mm
46 kg
15.000VA
3 Phase, 4 Wire Y 380VAC + 10 – 20%
3 Phase, 4 Wire Y 380VAC ± 3%
Three Phase
> 90%
DC Servo Motor
620 x 470 x 1000 mm
104 kg
45.000VA
3 Phase, 4 Wire Y 380VAC + 10 – 20%
3 Phase, 4 Wire Y 380VAC ± 3%
Three Phase
> 90%
DC Servo Motor
670 x 530 x 1090 mm
193 kg
60.000VA
3 Phase, 4 Wire Y 380VAC + 10 – 20%
3 Phase, 4 Wire Y 380VAC ± 3%
Three Phase
> 90%
DC Servo Motor
710 x 570 x 1310 mm
220 kg

Key Features

Automatic Voltage Regulation using Advanced Servo Motor Control

Wide Input Range: Handles Large Voltage Fluctuations Effectively

Reliability: Protects Sensitive Equipments from Damage Due to Unstable Power

Durability: Strong Design with Long Service Life for Industrial and Commercial Use
