UPS Line Interactive

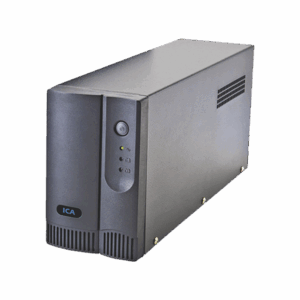

CP1400

1400VA / 700W | 160 – 250V

ICA UPS CP1400 Capacity 1400 VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.

Key Features

Reliable Power for Various Applications

Auto-Restart Function

Auto Charging at Off Mode

Cost Effective Solution

Specification

Capacity

:

1400VA / 700W
AC Input Voltage

:

160 – 250V
Inverter Output Voltage

:

220 ± 5%V
Inverter Output Waveform

:

SYNTHESIZED SINEWAVE
Inverter Output Efficiency

:

>80%
Transfer Time

:

≤4ms
Dimension (D x W x H)

:

375 x 135 x 201mm
Net Weight

:

14Kg
AC Input Current

:

2.9A
AC Input Frequency

:

50 ± 3%Hz
AC Input Protection

:

Fuse 5A
DC Input Internal Battery

:

2 x 12V, 7Ah
Inverter Output Frequency

:

50 ± 1%Hz
Charger Type

:

CONSTANT VOLTAGE
Charger Voltage

:

27.2V
Charger Current

:

1.5A
Backup Time

:

10min
Indicator

:

LED & BUZZER
Operation Temperature

:

0 – 40°C

Key Features

Reliable Power for Various Applications

Auto-Restart Function

Auto Charging at Off Mode

Cost Effective Solution
