UPS Line Interactive

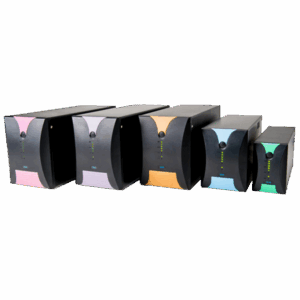

CT Series

300VA – 3200VA, Output 220V

CT Series line-interactive UPS ranging from 300VA-3200VA has a simulated sinewave output. The AVR inside the UPS provides the loads with power protection against any interference in the electrical mains.

Contact Us

Key Features

Reliable Power for Various Applications

Auto-Restart Function

Auto Charging at Off Mode

Cost Effective Solution

Cost Effective Solution 2

Cost Effective Solution 3

Model Specification Overview

Models

Capacity
AC Input Voltage
Inverter Output Voltage
Inverter Output Waveform
Inverter Output Efficiency
Transfer Time
Dimension (DxWxH)
Net Weight

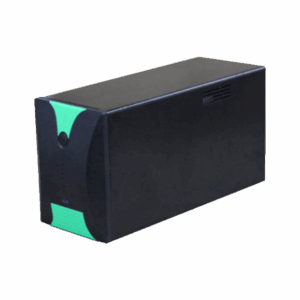

CT382B

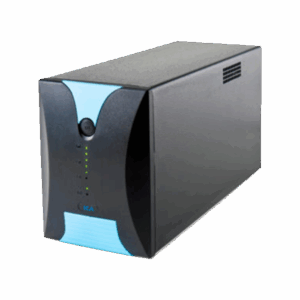

CT682B

CT1082B

CT1382B

CT1682B

600VA / 300W
160 – 250V
220 ± 5%V
SYNTHESIZED SINEWAVE
>80%
≤4ms
340 x 95 x 145mm
6 Kg
1200VA / 600W
160 – 250V
220 ± 5%V
SYNTHESIZED SINEWAVE
>80%
≤4ms
390 x 145 x 195mm
14 Kg
2000VA / 1000W
160 – 250V
220 ± 5%V
SYNTHESIZED SINEWAVE
>80%
≤4ms
430 x 175 x 230mm
20.3 Kg
2600VA / 1300W
160 – 250V
220 ± 5%V
SYNTHESIZED SINEWAVE
>80 %
≤4ms
445 x 175 x 230 mm
23.5 Kg
3200VA / 1600W
160 – 250V
220 ± 5%V
SYNTHESIZED SINEWAVE
>80%
≤4ms
445 x 175 x 230mm
30 Kg

Key Features

Reliable Power for Various Applications

Auto-Restart Function

Auto Charging at Off Mode

Cost Effective Solution

Cost Effective Solution 2

Cost Effective Solution 3
