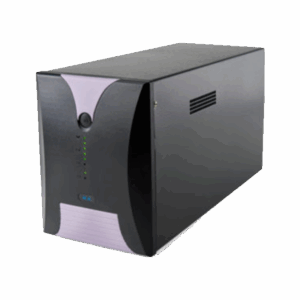

UPS Line Interactive

CT1382B

2600VA / 1300W | 160 – 250V

ICA UPS CT1382B Capacity 2600 VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.

Key Features

Reliable Power for Various Applications

Auto-Restart Function

Auto Charging at Off Mode

Cost Effective Solution

Specification

Capacity

:

2600VA / 1300W
AC Input Voltage

:

160 – 250V
Inverter Output Voltage

:

220 ± 5%V
Inverter Output Waveform

:

SYNTHESIZED SINEWAVE
Inverter Output Efficiency

:

>80 %
Transfer Time

:

≤4ms
Dimension (D x W x H)

:

445 x 175 x 230 mm
Net Weight

:

23.5 Kg
AC Input Current

:

6.2A
AC Input Frequency

:

50 ± 3%Hz
AC Input Protection

:

Fuse 10A
DC Input Interal Battery

:

4 x 12V, 7Ah
DC Input Protection

:

50A
Inverter Output Frequency

:

50Hz
Charger Type

:

CONSTANT VOLTAGE
Charger Voltage

:

54V
Charger Current

:

1.5A
Backup Time

:

10min
Indicator

:

LED & BUZZER
Operation Temperature

:

0 – 40°C

Key Features

Reliable Power for Various Applications

Auto-Restart Function

Auto Charging at Off Mode

Cost Effective Solution
