EPEVER XTRA4215N-G3 MPPT 40A

40A | MPPT

EPEVER XTRA4215N-G3 rated charging/discharging current at 40A, battery voltage at 12V/24Vdc



Contact Us
XTRA-N G3_2

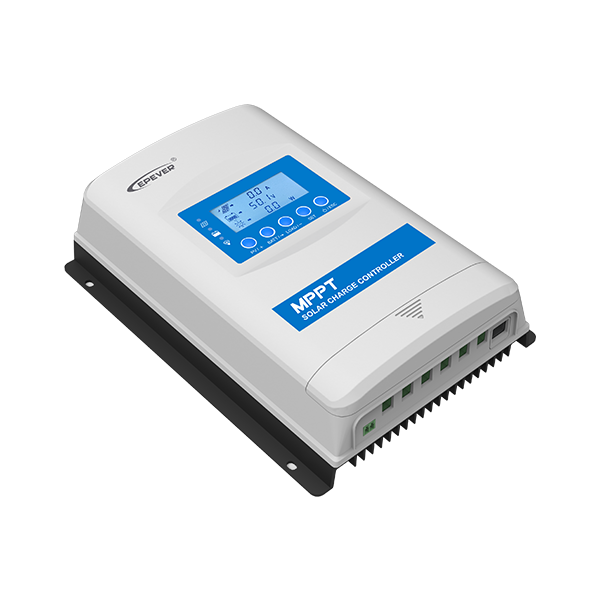

XTRA-N G3_3

Key Features

Constant voltage output
Rated Charging Power & Current Limitation

Certain models support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range

Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%

Compatible with various types of batteries
lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules

Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries
RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring

Low self-consumption, lower than 10mA
IP33 enclosure, Comprehensive electronic protections

Specification

Battery Rated Voltage

:

12/24VDC
Charge/Discharge Current

:

40A
Controller Work Voltage Range

:

8~31V
Rated Charging Power

:

520W/12V, 1040W/24V
Max. Conversion Efficiency

:

97.90%
Max. Load Efficiency

:

95.40%
Dimension (LxWxH)

:

255 x 187 x 75.7mm
Net Weight

:

2.08 kg
MPPT Voltage Range

:

(Battery voltage+2V)~108V
PV Maximum Open-Circuit Voltage

:

150V (At minimum operating environment temperature, 138V (At 25℃ environment temperature)
Static Losses (Enable the com. port)

:

≤15mA (12V), ≤9mA (24V)
Static Losses (Disable the com. port)

:

≤8mA(12V), ≤5mA(24V)
Discharge-Circuit Voltage Drop

:

≤0.23V
Temperature Compensation

:

-3mV/℃/2V (Default)
Grounding Type

:

Common negative
RS485 Port

:

5VDC/200mA (RJ45)
LCD Backlight Time

:

Default: 60S, Range: 0~999S (0S: the backlight is ON all the time)
Mounting Size (L x W)

:

200 x 178mm
Mounting Hole Size

:

Φ5mm
Terminal

:

6AWG (16mm²)
Recommended Wire Size

:

6AWG (16mm²)
Work Temperature Range

:

-25℃~+45℃
Storage Temperature Range

:

-20℃~+70℃
Relative Humidity

:

≤95%, N.C.
Enclosure

:

IP33 (3-protection against solid objects: protected against solid objects over 2.5mm. 3-protected against sprays to 60° from vertical).
Pollution Degree

:

PD2

Key Features

Constant voltage output
Rated Charging Power & Current Limitation

Certain models support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range

Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%

Compatible with various types of batteries
lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules

Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries
RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring

Low self-consumption, lower than 10mA
IP33 enclosure, Comprehensive electronic protections
