Mono

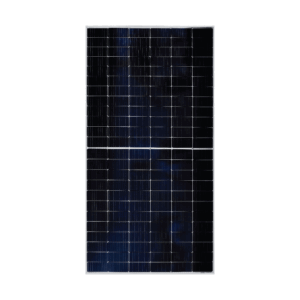

ICA SOLAR ICA450-72HMG 450Wp Mono

Powered by high-efficiency MONOCRYSTALLINE cells, this series of high performance modules provides the most cost-effective solution for lowering the LCOE of any PV systems large or small.

Contact Us

Key Features

High Efficiency
Advanced PERC technology maximizes energy yield.

Half-Cut Design
Lower resistive loss and improved performance in partial shading.

Durability
Engineered for long service life with robust construction.

Versatility
Suitable for large-scale solar projects and rooftop systems.

Specification

Max. Power at STC, Pmax

:

STC: 450W NOCT: 338.30W
Max. Power Voltage, Vmp

:

STC: 41.40V NOCT: 38.90V
Max. Power Current, Imp

:

STC: 10.87A NOCT: 8.70A
Open Circuit Voltage, Voc

:

STC: 50.00V NOCT: 46.60V
Short Circuit Current, Isc

:

STC: 11.36A NOCT: 9.18A
Efficiency

:

20.37%
Power Tolerance

:

0~±5%
Weight

:

24.50kg
Dimension of Module

:

2108 x 1048 x 35mm
Pmax Temperature Coefficient

:

-0.36%/°C
Voc Temperature Coefficient

:

-0.29%/°C
Isc Temperature Coefficient

:

-0.05%/°C
Maximum System Voltage

:

1500VDC
Maximum Series Fuse Rating

:

20A
Operating Temperature

:

-40~+85°C
NOCT

:

45±2°C

Key Features

High Efficiency
Advanced PERC technology maximizes energy yield.

Half-Cut Design
Lower resistive loss and improved performance in partial shading.

Durability
Engineered for long service life with robust construction.

Versatility
Suitable for large-scale solar projects and rooftop systems.

Document & Download

No data was found

Download ICA SOLAR ICA450-72HMG 450Wp Mono
