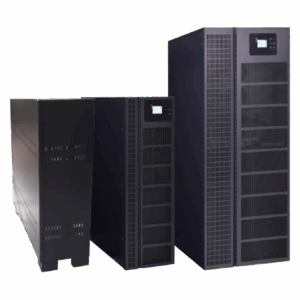

UPS Online Sinewave

SE C3 (H) Series

60.000VA-100.000VA

SE C3 (H) Series online sinewave UPS ranging from 60.000VA-100.000VA has a simulated sinewave output. The AVR inside the UPS provides the loads with power protection against any interference in the electrical mains.

Contact Us

Key Features

Reliable Power for Various Applications

Auto Charging at Off Mode

Auto-Restart Function

Cost Effective Solution

Model Specification Overview

Models

Capacity
AC Input Voltage
Inverter Output Voltage
Inverter Output Waveform
Inverter Output Efficiency
Transfer Time
Dimension (DxWxH)
Net Weight

SE6102C33

SE8102C33

SE1103C33

60.000VA / 60.000W
138 ~ 485Vac
380 / 400 / 415Vac (3Ph+N+PE)
–
95.5%
Utility to Battery: 0ms; Utility to Bypass: 0ms
828 x 250 x 868mm
83Kg
80.000VA / 80.000W
138 ~ 485Vac
380 / 400 / 415Vac (3Ph+N+PE)
–
95.5%
Utility to Battery: 0ms; Utility to Bypass: 0ms
850 x 442 x 1200mm
154Kg
100.000 VA/ 100.000W
138 ~ 485Vac
380 / 400 / 415Vac (3Ph+N+PE)
–
95.5%
Utility to Battery: 0ms; Utility to Bypass: 0ms
850 x 442 x 1200mm
161Kg

Key Features

Reliable Power for Various Applications

Auto Charging at Off Mode

Auto-Restart Function

Cost Effective Solution
