Solar Inverters

SNV-GF6541

6500W, 48Vdc

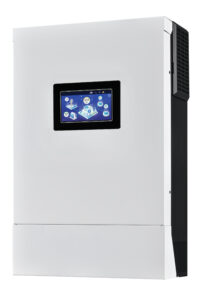

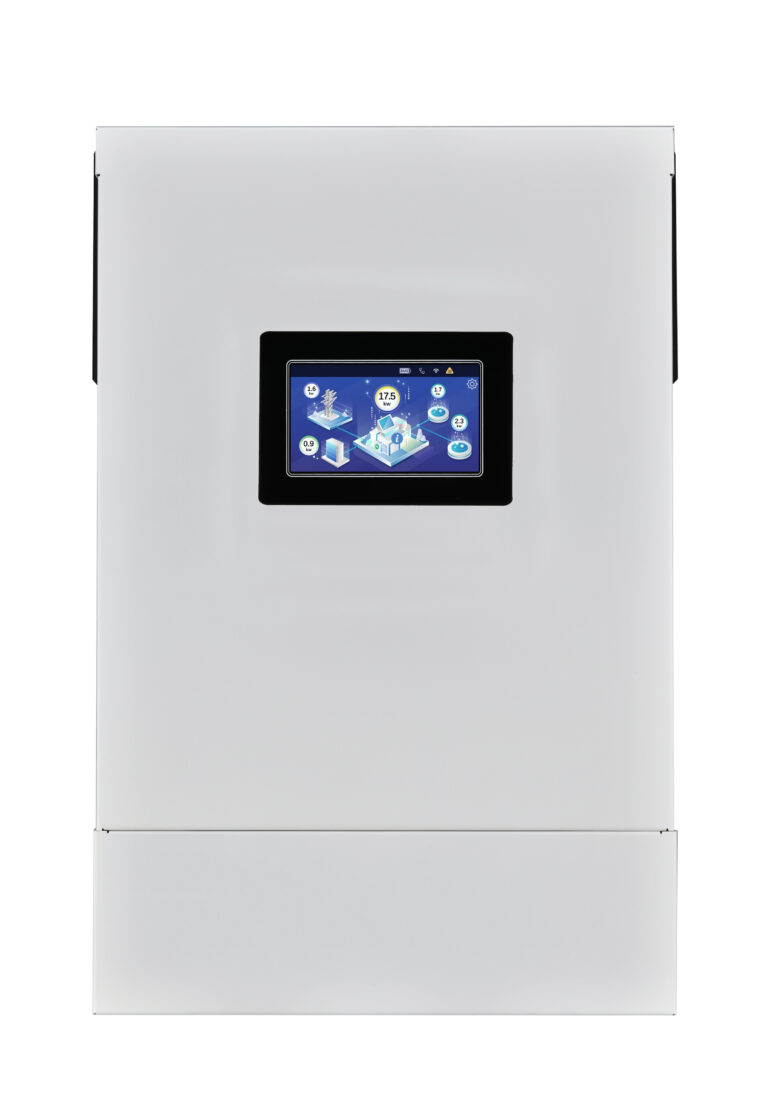

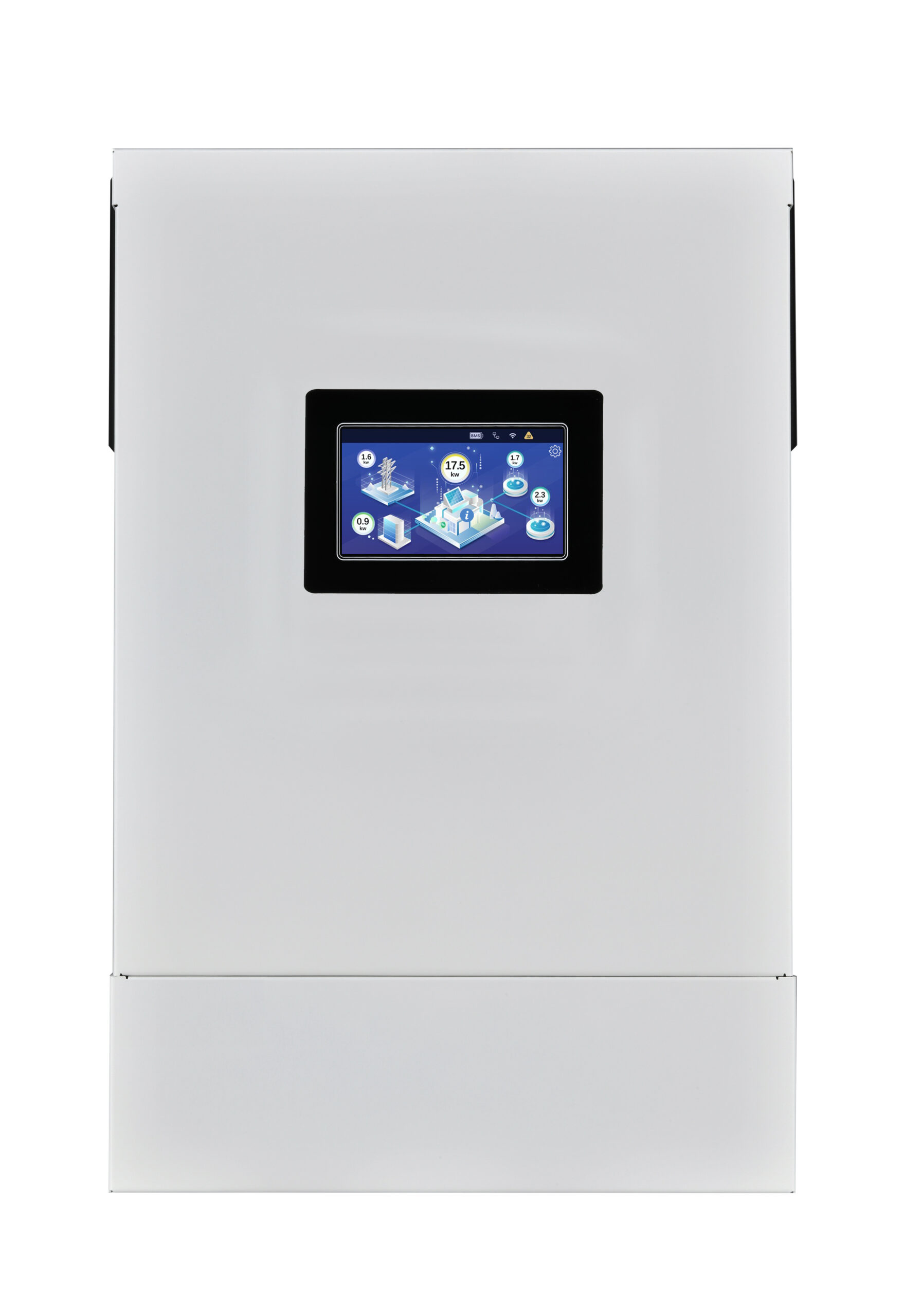

ICA Solar SNV-GF6541 is single phase solar off-grid inverter charger with capacity of 6500W, 48Vdc.





Contact Us
[#Beginning of Shooting Data Section] Image Size:S (4128 x 2752), FX 2025/02/10 15:35:21.24 Time Zone and Date:UTC+8, DST:OFF Tiff-RGB (8-bit) Nikon D850 Lens:105mm f/2.8D Focal Length:105mm Focus Mode:MF AF-Area Mode:Single-point AF VR: AF Fine Tune:OFF Aperture:f/29 Shutter Speed:1/125s (Mechanical Shutter) Exposure Mode:Manual Exposure Comp.:0EV Exposure Tuning: Metering:Highlight-Weighted ISO Sensitivity:1EV under 64 Device: White Balance:Direct sunlight, A0.50, 0 Color Space:Adobe RGB High ISO NR:ON (High) Long Exposure NR:OFF Active D-Lighting:Extra High Vignette Control:Normal Auto Distortion Control:ON Portrait impression balance:OFF Picture Control:[SD] STANDARD Base:[SD] STANDARD Quick Adjust:- Sharpening:+7.00 Clarity:+1.00 Contrast:+1.00 Brightness: 0.00 Saturation:+1.00 Hue: 0.00 Filter Effects: Toning: Optimize Image: Color Mode: Tone Comp.: Hue Adjustment: Saturation: Sharpening: Latitude: Longitude: Altitude: Altitude Reference: Heading: UTC: Map Datum: [#End of Shooting Data Section]

Key Features

Pure Sine Wave Output
Delivers clean and stable pure sine wave power, making it safe for sensitive electronics such as computers, networking equipment, and modern home appliances.

Integrated Solar & AC Charging (MPPT Ready)
Built-in MPPT solar charger supports up to 1000W PV input with a wide MPPT voltage range, while also allowing AC charging—ensuring reliable battery charging from multiple energy sources.

Flexible & Intelligent Power Management
Configurable input priority (Solar or AC) via LCD, selectable input voltage ranges, and adjustable charging currents provide maximum flexibility for different installations and load requirements.

Battery Equalization
Function to Optimize Battery Performance and Extend Lifecycle

Specification

Rated Output Power (W)

:

6500W
Battery Nominal DC Voltage

:

48Vdc
Max. PV Input DC Voltage

:

500Vdc
MPPT Voltage Range

:

90~450Vdc
Max. Charging Current

:

120A
Phase

:

Single phase
Dimension (DxWxH)

:

140 x 295 x 468mm
Net Weight

:

12kg
INPUT

:

Voltage

:

230Vac
Selectable Voltage Range

:

170~280Vac (for personal computers); 90~280Vac (for home appliances)
Frequency Range

:

50Hz/60Hz (auto sensing)
OUTPUT

:

Output Power

:

6.5kVA/6.5kW with PV+Battery; 6kVA/6kW with Battery only.
AC Voltage Regulation (Battery Mode)

:

230Vac±5%
Overload Capability

:

5s @ ≥150% load; 10s @ 110%~150% load; 100ms @ ≥200% load
Efficiency (Peak)

:

93%
Transfer Time

:

10ms (for personal computers); 20ms (for home appliances)
Waveform

:

Pure Sine Wave
BATTERY

:

Battery Voltage

:

48Vdc
Floating Charge Voltage

:

54Vdc
Overcharge Protection

:

66Vdc
SOLAR CHARGER & AC CHARGER

:

Solar Charger Type

:

MPPT
Max. PV Array Power

:

9000W
Max. PV Input Current

:

27A
Max. Solar Charge Current

:

120A
Max. AC Charge Current

:

120A
Communication Interface

:

RS232/RS485/WiFi
OPERATING ENVIRONMENT

:

Humidity

:

5% to 95% relative humidity (non-condensing)
Operating Temperature

:

-10°C to 50°C
Storage Temperature

:

-15°C to 60°C

Key Features

Pure Sine Wave Output
Delivers clean and stable pure sine wave power, making it safe for sensitive electronics such as computers, networking equipment, and modern home appliances.

Integrated Solar & AC Charging (MPPT Ready)
Built-in MPPT solar charger supports up to 1000W PV input with a wide MPPT voltage range, while also allowing AC charging—ensuring reliable battery charging from multiple energy sources.

Flexible & Intelligent Power Management
Configurable input priority (Solar or AC) via LCD, selectable input voltage ranges, and adjustable charging currents provide maximum flexibility for different installations and load requirements.

Battery Equalization
Function to Optimize Battery Performance and Extend Lifecycle
