SNV-GH10041

10.000W, 48Vdc

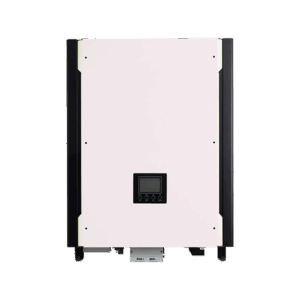

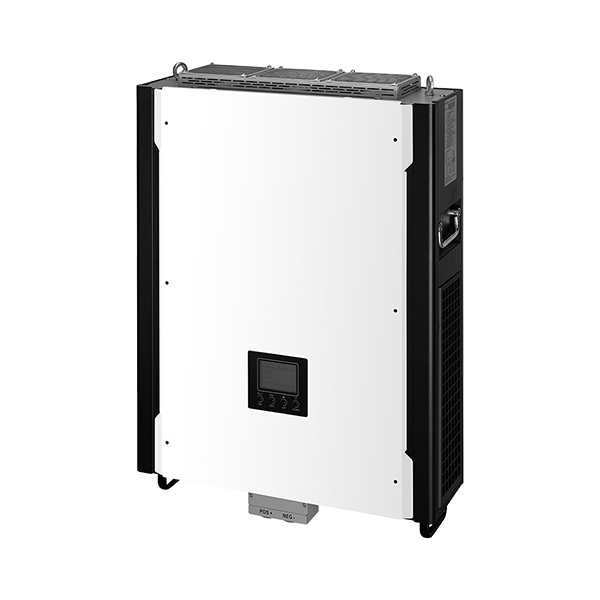

ICA Solar SNV-GH10041 is a hybrid bidirectional three phase solar inverter with capacity of 10.000W, 48Vdc.

Key Features

Bi-directional Power Flow
Charges batteries from solar or grid, and discharges to supply loads or feed back to the grid.

Seamless Backup
Automatically switches to battery during grid outages for uninterrupted power.

High Efficiency
Optimized conversion reduces energy loss and improves savings.

Remote Monitoring
Access system performance data anytime, anywhere.

Self-consumption and feed-in to the grid
User-adjustable supply priority for PV, battery or grid

User-adjustable battery charging current suits different types of batteries
Operation modes: Grid-tied, off-grid and grid-tied with backup

Built-in timer for various mode of on/off operation
Multiple communication for USB, RS-232, Modbus and SNMP

Monitoring software for real-time status display and control
Parallel operation up to 6 units for up to 60KW

Specification

Rated Output Power (W)

:

10.000W

Battery Nominal DC Voltage

:

48Vdc

Max. PV Input DC Voltage

:

900Vdc

MPPT Voltage Range

:

350Vdc~950 Vdc

Max. Charging Current

:

10A-200A

Phase

:

3-phase in/3-phase out

Dimension (DxWxH)

:

167.2 x 500 x 622mm

Net Weight

:

40 kg

Max. PV Input Power

:

14.850W

Maximum Charging Power

:

9.600W

GRID-TIE OPERATION
INPUT (DC)

:

Nominal DC Voltage/ Max. DC Voltage

:

720Vdc/900Vdc

Start-up Voltage/ Initial Feeding Voltage

:

320Vdc/350Vdc

Number of MPP Trackers/ Max. Input Current

:

2 / 2 x 18.6A

GRID OUTPUT (AC)

:

Nominal Output Voltage

:

220 Vac (P-N) / 380 Vac (P-P)

Output Voltage Range

:

184 – 265 Vac (P-N)

Nominal Output Current

:

15.2A per phase

Power Factor (cos Φ)

:

>0.99

EFFICIENCY

:

Max. Conversion Efficiency (DC/AC)

:

96%

OFF-GRID OPERATION
AC INPUT

:

AC Start-up Voltage/ Auto Restart Voltage

:

120 – 140Vac (P-N) / 180Vac (P-N)

Acceptable Input Voltage Range

:

170 – 290Vac (P-N)

PV INPUT (DC)

:

Max. DC Voltage

:

900Vdc

MPPT Voltage Range

:

350Vdc – 950Vdc

Number of MPP Trackers/ Max. Input Current

:

2 / 2 x 18.6A

BATTERY MODE OUTPUT(AC)

:

Nominal Output Voltage

:

220Vac (P-N) / 380Vac (P-P)

Output Wave Form

:

Pure Sine Wave

Efficiency (DC to AC)

:

91%

HYBRID OPERATION
PV INPUT

:

Nominal DC Voltage/ Max. DC Voltage

:

720Vdc / 900Vdc

Start-up Voltage/ Initial Feeding Voltage

:

320Vdc / 350Vdc

MPPT Voltage Range

:

350Vdc – 950Vdc

Number of MPP Trackers/ Max. Input Current

:

2 / 2 x 18.6A

GRID OUTPUT(AC)

:

Nominal Output Voltage

:

220Vac (P-N) / 380Vac (P-P)

Output Voltage Range

:

184 – 265Vac (P-N)

Nominal Output Current

:

15.2A per phase

AC INPUT

:

AC Start-up Voltage/ Auto Restart Voltage

:

120~140Vac (P-N) / 180Vac (P-N)

Acceptable Input Voltage Range

:

170 – 290Vac (P-N)

Max. AC Input Current

:

40A

BATTERY MODE OUTPUT(AC)

:

Nominal Output Voltage

:

220Vac (P-N) / 380Vac (P-P)

Efficiency (DC to AC)

:

91%

INTERFACE

:

Communication Port

:

RS-232 / USB / Dry Contact

Intelligent Slot

:

Optional SNMP, Modbus and AS-400 cards available

ENVIRONMENT

:

Humidity

:

0~90% RH (no condensing)

Operating Temperature

:

-10°C to 50°C
