Solar Inverters

SNV-GH3041

3000W, 48Vdc

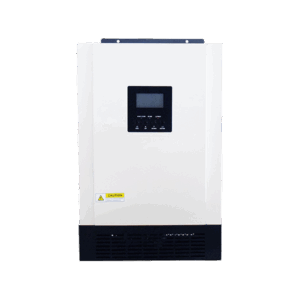

ICA Solar SNV-GH3041 is a hybrid bidirectional single phase solar inverter with capacity of 3000W, 48Vdc.

Contact Us
SNV-GH2041_2

Key Features

Bi-directional Power Flow
Charges batteries from solar or grid, and discharges to supply loads or feed back to the grid.

Seamless Backup
Automatically switches to battery during grid outages for uninterrupted power.

High Efficiency
Optimized conversion reduces energy loss and improves savings.

Remote Monitoring
Access system performance data anytime, anywhere.

Pure sine wave output
Self-consumption and feed-in to the grid

Programmable supply priority for PV, battery or grid
User-adjustable charging current and voltage

Operation modes: Grid-tied, off-grid and grid-tied with backup
Monitoring software for real-time status display and control

Parallel operation up to 9 units
Battery independent system

Specification

Rated Output Power (W)

:

3000W
Battery Nominal DC Voltage

:

48Vdc
Max. PV Input DC Voltage

:

450Vdc
MPPT Voltage Range

:

120Vdc~430Vdc
Max. Charging Current

:

60A
Phase

:

1-phase in/1-phase out
Dimension (DxWxH)

:

120 x 295 x 468mm
Net Weight

:

11 kg
Max. PV Input Power

:

4000W
PV INPUT (DC)

:

Nominal DC Voltage/ Max. DC Voltage

:

360Vdc/450Vdc
Number of MPP Trackers/ Max. Input Current

:

1/18A
GRID-TIED GRID OUTPUT (AC)

:

Nominal Output Voltage

:

220/230/240Vac
Output Voltage Range

:

184~264.5Vac or 195.5~253Vac (selectable)
Output Frequency Range

:

47.5~51.5Hz or 49~51Hz (selectable)
Nominal Output Current

:

13A
Power Factor (cos Φ)

:

>0.99
EFFICIENCY

:

Max. Conversion Efficiency (DC/AC)

:

95%
OFF-GRID & HYBRID OPERATION
AC INPUT

:

Acceptable Input Voltage Range

:

90~280Vac or 170~280Vac
Frequency Range

:

50Hz/60Hz (auto sensing)
BATTERY MODE OUTPUT(AC)

:

Nominal Output Voltage

:

220/230/240Vac
Output Wave Form

:

Pure Sine Wave
Nominal Output Frequency

:

50Hz
Efficiency (DC to AC)

:

93%
BATTERY & CHARGER

:

Max. Solar Charging Current

:

60A
Max. AC Charging Current

:

60A
INTERFACE

:

Parallel Function

:

Yes, 9 units
Communication Port

:

USB or RS-232/Dry contact
ENVIRONMENT

:

Humidity

:

0~90% RH (no condensing)
Operating Temperature

:

-10°C to 50°C

Key Features

Bi-directional Power Flow
Charges batteries from solar or grid, and discharges to supply loads or feed back to the grid.

Seamless Backup
Automatically switches to battery during grid outages for uninterrupted power.

High Efficiency
Optimized conversion reduces energy loss and improves savings.

Remote Monitoring
Access system performance data anytime, anywhere.

Pure sine wave output
Self-consumption and feed-in to the grid

Programmable supply priority for PV, battery or grid
User-adjustable charging current and voltage

Operation modes: Grid-tied, off-grid and grid-tied with backup
Monitoring software for real-time status display and control

Parallel operation up to 9 units
Battery independent system
