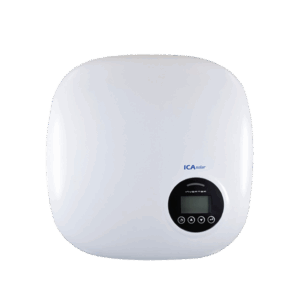

SNV-GT5023DSC

5kW | DOUBLE MPPT

Penggunaan inverter On-Grid untuk mengubah arus DC dari panel surya menjadi arus AC. Inverter ini terangkai dalam sistem On-Grid dimana area tersebut harus terhubung dengan jaringan PLN yang ada, dan tanpa menggunaan baterai/aki.

Key Features

Max. PV Voltage up to 600V

DC power up to 1.35 ratio

Type II DC SPD/Type III AC SPD

IP65 protection

Compatible for big capacity PV panel

WiFi / 4G Plug optional

High efficiency up to 98.3%

Smaller and lighter

Specification

Nominal AC Output Power (kW)

:

5 kW

Max. PV Input DC Voltage

:

600 Vdc

MPPT Voltage Range

:

80V – 560V

Number of MPPT

:

Strings per MPPT

:

Phase

:

1-Phase

Dimension (DxWxH)

:

380 x 380 x 150mm

Net Weight

:

11Kg

INPUT (DC)

:

Max. recomended PV power

:

6750 W

Nominal voltage

:

380Vdc

Start voltage

:

100V

Max. input current per MPPT

:

15A

Max. short-circuit current per MPPT

:

18A

OUTPUT (AC)

:

Max. AC apparent power

:

5500VA

Nominal AC voltage

:

230V L-N

AC grid frequency range

:

50Hz / 60Hz ±5Hz

Max. output current

:

24A

Power factor (cos Φ)

:

0.8 leading to 0.8 lagging

THDI

:

<3%

EFFICIENCY

:

Max efficiency

:

98.30%

PROTECTION DEVICE

:

DC switch

:

Yes

Anti-islanding protection

:

Yes

Output over current

:

Yes

DC reverse polarity protection

:

Yes

String fault Detection

:

Yes

Surge protection

:

DC Type III; AC Type III

Insulation detection

:

Yes

AC short circuit protection

:

Yes

ENVIRONMENT

:

Operating temperature range

:

-25°C~+60°C

Cooling type

:

Natural

Max. operation altitude

:

4000m

Max. operation humidity

:

0 – 100% (no condensation)

AC output terminal type

:

Quick connector

IP class

:

IP65

Topology

:

Transformerless

Communication interface

:

RS485/WiFi/4G

Display

:

LCD

Certification & standart

:

EN/IEC62109-1/2

Key Features

Max. PV Voltage up to 600V

DC power up to 1.35 ratio

Type II DC SPD/Type III AC SPD

IP65 protection

Compatible for big capacity PV panel

WiFi / 4G Plug optional

High efficiency up to 98.3%

Smaller and lighter
