Solar Inverters

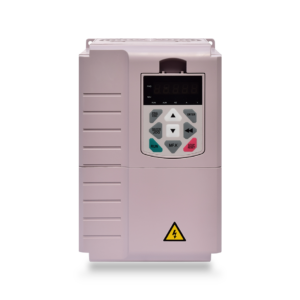

SNV-SP1133

Solarpump, 11kW

The SNV-SP1133 is a solarpump inverter charger designed to seamlessly manage solar, battery, and grid power. It intelligently switches between sources to ensure uninterrupted supply, while maximizing solar self-consumption and battery efficiency. The SNV-SP Series is ideal for residential, commercial, and industrial applications seeking reliable, flexible, and future-ready energy management.

Contact Us

Key Features

Smart Control
Inbuilt AC compensation functions, auto balance power supply between solar power and city grid inoput power

Stable & Durable
Inbuilt latest max power point tracking algorithm to maximum solar power efficiency

PV Input
Wide range of PV input voltage from 150VDC~800VDC, Available single phase / triple phase

Specification

Power Capacity (kW)

:

11
Input Current (A)

:

26.0
Output Current (A)

:

25
Adopter Motor (kW)

:

11
Max. Input DC Voltage

:

780VDC
Output Frequency Range

:

0~50/60Hz
MPPT Efficiency

:

99.96%
Number of Input

:

1
AC Input Voltage

:

Three-phase 380V (-15%) ~ 440V (+10%)
AC Output Voltage

:

Three-phase 0~380V / 415V / 440V
Recommended Voc Range

:

600VDC < Voc <780VDC
Recommended Vmp

:

>540VDC
Rated Output Voltage

:

3AC 380~460V
Max. eff. of the Whole Machine

:

97%
Cooling Mode

:

Forced air cooling
Protection Grade

:

IP20
Altitude

:

Below 1000m, when the altitude exceeds 1000m, please reduce according to the ratio of 100m down 1%.
Standard of conformity

:

CE

Key Features

Smart Control
Inbuilt AC compensation functions, auto balance power supply between solar power and city grid inoput power

Stable & Durable
Inbuilt latest max power point tracking algorithm to maximum solar power efficiency

PV Input
Wide range of PV input voltage from 150VDC~800VDC, Available single phase / triple phase
