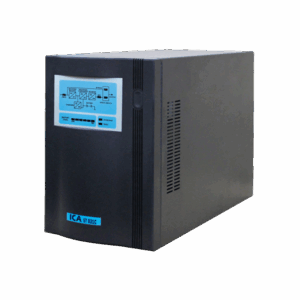

UPS Online Sinewave

ST831C

1.600VA / 800W | 160 – 250V

ICA UPS ST 831 C Capacity 1600 VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.

Key Features

Reliable Power for Various Applications

Auto Charging at Off Mode

Auto-Restart Function

Cost Effective Solution

Specification

Capacity

:

1.600VA / 800W
AC Input Voltage

:

160 – 250V
Inverter Output Voltage

:

220 ± 2%V
Inverter Output Waveform

:

SINEWAVE
Inverter Output Efficiency

:

>85%
Transfer Time

:

0ms
Dimension (L x W x H)

:

395 x 190 x 290mm
Net Weight

:

23Kg
AC Input Frequency

:

50 ± 3%Hz
AC Input Protection

:

Fuse 7A
DC Input Voltage

:

48V
DC Input Internal Battery

:

4 x 12V, 7Ah
DC Input Protection

:

Fuse
Charger Topology

:

SWITCHING REGULATION
Charger Floating Voltage

:

54V
Inverter Output Distorsion

:

<3% THD
Inverter Output Topology

:

PULSE WIDTH MODULATION (PWM)
Inverter Output Frequency

:

50 ± 1%Hz
Transfer Time STS

:

ZERO CROSSING BYPASS TO INVERTER
Backup Time

:

10min
Buzzer AC Input Low/Fail

:

INTERMITTENT SOUND WITH 4 SECONDS INTERVAL
Buzzer Battery Low

:

INTERMITTENT SOUND WITH 1 SECOND INTERVAL
Operation Temperature

:

1 – 40°C

Key Features

Reliable Power for Various Applications

Auto Charging at Off Mode

Auto-Restart Function

Cost Effective Solution
