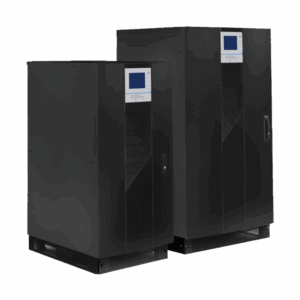

UPS Online Sinewave

TP KEP Series

10.000VA-300.000VA

TP KEP Series online sinewave UPS ranging from 10.000VA-300.000VA has a simulated sinewave output. The AVR inside the UPS provides the loads with power protection against any interference in the electrical mains.

Contact Us

Key Features

Reliable Power for Various Applications

Auto Charging at Off Mode

Auto-Restart Function

Cost Effective Solution

Model Specification Overview

Models

Capacity
AC Input Voltage
Inverter Output Voltage
Inverter Output Waveform
Inverter Output Efficiency
Transfer Time
Dimension (DxWxH)
Net Weight

SIN10KEP

SIN20KEP

SIN30KEP

SIN40KEP

SIN60KEP

SIN80KEP

SIN100KEP

SIN120KEP

SIN160KEP

SIN200KEP

SIN300KEP

10.000VA / 9.000W
380/400/415Vac (380-25%, 415+20%), (3Ph+N+PE)
380 / 400 / 415Vac ±1%
Sinewave
89%
0ms (Line mode – Battery mode)
570 x 800 x 1195mm
217Kg
20.000VA / 18.000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase
380 / 400 / 415Vac ±1%
Sinewave
89%
0ms / 1ms
800 x 570 x 1195mm
–
30.000VA / 27.000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase
380 / 400 / 415Vac ±1%
Sinewave
90%
0ms / 1ms
800 x 570 x 1195mm
–
40.000VA / 36.000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase
380 / 400 / 415Vac ±1%
Sinewave
90%
0ms / 1ms
800 x 570 x 1195mm
–
60.000VA / 54.900W
380 / 400 / 415Vac (-25% ~ +20%) 3phase
380 / 400 / 415Vac ±1%
Sinewave
91%
0ms / 1ms
760 x 880 x 1600mm
–
80.000VA / 72.000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase
380 / 400 / 415Vac ±1%
Sinewave
91%
0ms / 1ms
760 x 880 x 1600mm
–
100,000VA / 90,000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase, 5wire
380 / 400 / 415Vac ±1%
Sinewave
91%
0ms; normal mode to battery mode
1160 x 805 x 1600mm
–
160,000VA / 144,000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase, 5wire
380 / 400 / 415Vac ±1%
Sinewave
92%
0ms; normal mode to battery mode
1160 x 805 x 1600mm
–
160,000VA / 144,000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase, 5wire
380 / 400 / 415Vac ±1%
Sinewave
92%
0ms / 2ms
1400 x 945 x 1900mm
–
200,000VA / 180,000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase, 5wire
380 / 400 / 415Vac ±1%
Sinewave
92%
0ms; normal mode to battery mode
1400 x 945 x 1900mm
–
300.000VA / 270.000W
380 / 400 / 415Vac (-25% ~ +20%) 3phase, 5wire
380 / 400 / 415Vac ±1%
Sinewave
92%
0ms; normal mode to battery mode
1400 x 945 x 1900mm
–

Key Features

Reliable Power for Various Applications

Auto Charging at Off Mode

Auto-Restart Function

Cost Effective Solution

Document & Download

No data was found

Download TP KEP Series

Brochure
User manual
Certification

Kirim Pertanyaan Untuk TP KEP Series
