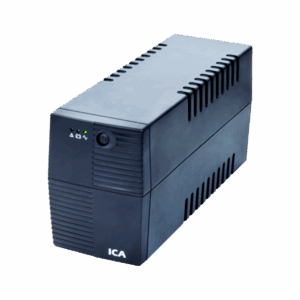

UPS Line Interactive

CN650

650VA / 325W

ICA UPS CN650 Capacity 650 VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.

Key Features

Compact Design

Compact Size and Lightweight

Easy to Use

EMI/RFI Filter

Build-in AVR

Build-in Sealed Lead Acid Battery

Audible and Visual Indicators

High Effiency

High Reliability

Width Input Voltage

Overload Protection

Specification

Capacity

:

650VA / 325W
AC Input Voltage

:

140 – 300V
Inverter Output Voltage

:

220 ± 5% V
Inverter Output Waveform

:

SYNTHESIZED SINEWAVE
Inverter Output Efficiency

:

>80 %
Transfer Time

:

≤4ms
Dimension (D x W x H)

:

287 x 101 x 142.5 mm
Net Weight

:

3.5 Kg
AC Input Current

:

1.6A
AC Input Frequency

:

50 ± 3 Hz
AC Input Protection

:

Fuse 3A
DC Input Internal Battery

:

1 x 12V, 7Ah
Inverter Output Frequency

:

50 ± 3 Hz
Charger Type

:

CONSTANT VOLTAGE
Charger Voltage

:

13.7V
Charger Current

:

1.2A
Backup Time

:

10min
Indicator

:

LED & BUZZER
Operation Temperature

:

0 – 40 °C
Weight Gross

:

4.5Kg

Key Features

Compact Design

Compact Size and Lightweight

Easy to Use

EMI/RFI Filter

Build-in AVR

Build-in Sealed Lead Acid Battery

Audible and Visual Indicators

High Effiency

High Reliability

Width Input Voltage

Overload Protection
