Solar Solar Inverters

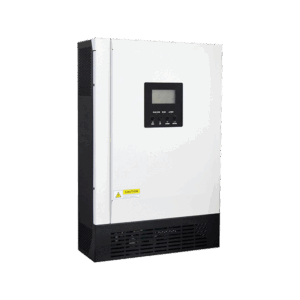

SNV-GH Series

Hybrid Bidirectional, 2kW – 10kW

The SNV-GH Series is a hybrid bidirectional inverter designed to seamlessly manage solar, battery, and grid power. It intelligently switches between sources to ensure uninterrupted supply, while maximizing solar self-consumption and battery efficiency. With advanced monitoring, high conversion efficiency, and robust protection features, the SNV-GH Series is ideal for residential, commercial, and industrial applications seeking reliable, flexible, and future-ready energy management.

Key Features

Bidirectional Power Flow: Charges batteries from solar or grid, and discharges to supply loads or feed back to the grid.

Seamless Backup: Automatically switches to battery during grid outages for uninterrupted power.

High Efficiency: Optimized conversion reduces energy loss and improves savings.

Remote Monitoring: Access system performance data anytime, anywhere.

Model Specification Overview

Models

Rated Output Power (W)
Battery Nominal DC Voltage
Max. PV Input DC Voltage
MPPT Voltage Range
Max. Charging Current
Phase
Dimension (DxWxH)
Net Weight
2000W
48Vdc
450Vdc
90Vdc~430Vdc
60A
1-phase in/1-phase out
120 x 295 x 468mm
11 kg
3000W
48Vdc
450Vdc
120Vdc~430Vdc
60A
1-phase in/1-phase out
120 x 295 x 468mm
11 kg
5000W
48Vdc
450Vdc
120Vdc~430Vdc
100A
1-phase in/1-phase out
140 x 295 x 468mm
12 kg
10.000W
48Vdc
900Vdc
350Vdc~950 Vdc
10A-200A
3-phase in/3-phase out
167.2 x 500 x 622mm
40 kg

Key Features

Bidirectional Power Flow: Charges batteries from solar or grid, and discharges to supply loads or feed back to the grid.

Seamless Backup: Automatically switches to battery during grid outages for uninterrupted power.

High Efficiency: Optimized conversion reduces energy loss and improves savings.

Remote Monitoring: Access system performance data anytime, anywhere.

Document & Download

No data was found

Kirim Pertanyaan Untuk SNV-GH Series
